Introduction

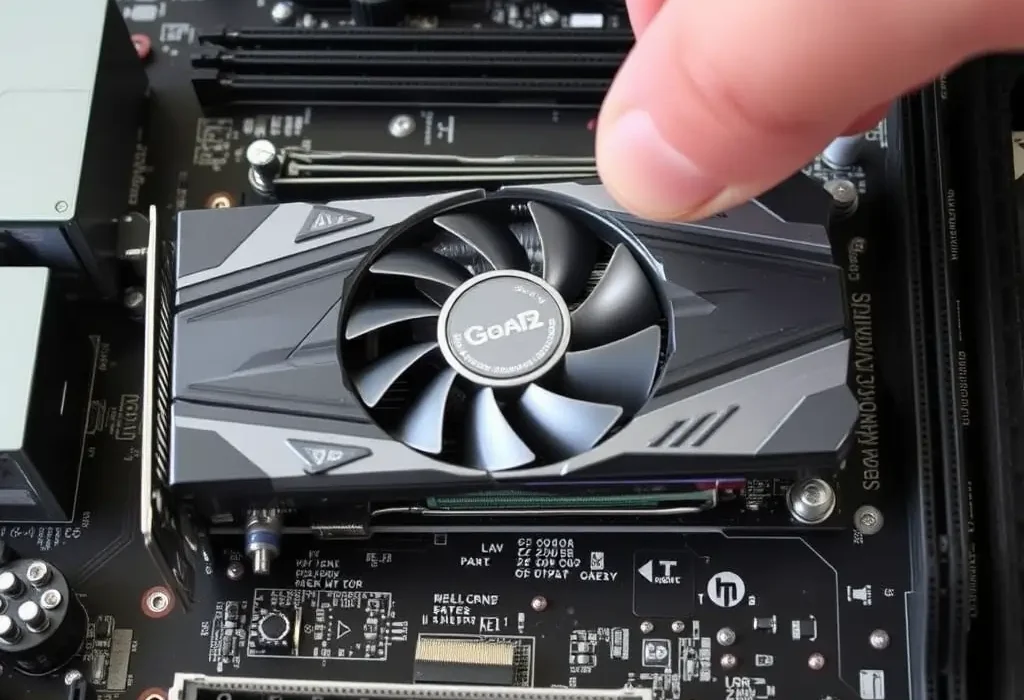

A GPU (Graphics Processing Unit) is one of the most important parts of your computer. It helps your computer show images and videos on the screen. Sometimes, when you’re trying to upgrade or clean your computer, the GPUs might get stuck in a motherboard (which is the large main board that connects all parts of your computer). In this guide, we’ll explain why GPU Stuck in Motherboard and how to safely remove them, even if they seem difficult to pull out.
Why Does a GPU Get Stuck?
There are several reasons why a GPU might get stuck in the motherboard. Each reason is related to either the physical components or the environment inside your computer.
| Reason | Explanation |
|---|---|
| PCIe Latch Problems | The PCIe latch holds the GPU in place. If this latch is hard to press or stuck, the GPU won’t come out easily. Sometimes the latch is hidden or very small, which makes it harder to find and press. |
| Dust and Dirt Build-Up | Computers can collect dust over time. This dust can make it hard to remove any parts, including the GPU. Dust can also make the PCIe slot sticky, causing the GPU to get stuck. |
| Thermal Expansion | When the computer gets hot, the metal parts of the GPU and motherboard expand a little. If your GPU has been running hot for a long time, it might expand just enough to make it harder to pull out. |
| Over-Tightened Screws | Screws that hold the GPU in place can sometimes be tightened too much. This can make it very hard to unscrew and remove the GPU without tools. |
| Old or Worn GPU | Older GPUs may have worn-out connectors. These connectors can get bent or misaligned, making it harder to remove them. Over time, these connectors also become less flexible. |
What to Do Before Removing a Stuck GPU
Before you try to remove a stuck GPU, it’s important to take a few steps to make sure you don’t hurt yourself or damage your computer.
- Turn Off and Unplug the Computer
- Make sure the computer is turned off completely and is unplugged from the power source. Electricity running through the components can cause injury or damage parts.
- Discharge Remaining Power
- Even after unplugging, there may still be a small amount of electricity left in the computer. Hold down the power button for about 10 seconds to release any leftover electricity.
- Prepare a Clean Workspace
- Make sure you have a clean and well-lit area where you can work comfortably. Keeping your workspace organized helps you avoid losing screws and other small parts.
- Ground Yourself (Prevent Static Damage)
- Static electricity from your body can damage sensitive computer parts like the GPU and motherboard. Wear an anti-static wrist strap to prevent static shock.
Tools You Will Need
Before starting, gather these tools to make the process easier:
| Tool | Purpose |
|---|---|
| Screwdriver | You’ll need this to loosen screws that hold the GPU in place. Usually, it’s a Phillips-head screwdriver. |
| Compressed Air | Dust can block the PCIe slot. Use compressed air to clean out the dust before removing the GPU. |
| Plastic Pry Tool | A small plastic tool can help gently release the GPU without damaging it or scratching the motherboard. |
| Anti-Static Wrist Strap | Protects the GPU and motherboard from static electricity, which can damage computer parts. |
How to Remove a Stuck GPU (Step-by-Step)
Now that you are ready, follow these steps to safely remove a stuck GPU from your motherboard.
Step 1: Power Off and Open the Computer Case
- Make sure the computer is turned off and unplugged from the wall.
- Open the side panel of the computer case by unscrewing the screws at the back of the case. This will give you access to the GPU.
Step 2: Unplug Power and Display Cables
- The GPU has power cables connected to it. Disconnect these cables carefully.
- There may also be cables running to your monitor (like an HDMI cable). Make sure to unplug these as well.
Step 3: Loosen the Screws on the GPU
- The GPU is often secured to the case with screws at the back of the computer. Use your screwdriver to loosen and remove these screws. Don’t pull the GPU yet; just make sure the screws are fully removed.
Step 4: Check the PCIe Slot and Latch
- Look for the PCIe slot latch. This latch is usually at the end of the PCIe slot, near where the GPU is connected to the motherboard. Press the latch down to release the GPU.
- Sometimes, the latch can be hard to find or hidden underneath the GPU. Use a flashlight if needed.
Step 5: Wiggle the GPU Gently
- Gently wiggle the GPU back and forth to loosen it from the PCIe slot. Do this slowly and carefully. Avoid pulling too hard, as this could damage the GPU or the motherboard.
- If the GPU is still stuck, check to make sure that no screws are still holding it in place and that the PCIe latch is fully released.
Step 6: Inspect the GPU and Motherboard
- Once the GPU is out, carefully check both the GPU and the motherboard for any damage. Look for bent pins, damaged connectors, or dust buildup that may have caused the problem.
What to Do If the GPU Is Still Stuck
Sometimes, even after following all the steps, the GPU may still be stuck. Here are some extra steps you can try:
| Extra Step | What to Try |
|---|---|
| Check for Hidden Screws | Double-check for any extra screws that may still be holding the GPU in place. |
| Let the Computer Cool Down | If the computer was recently running, let it cool for 30 minutes before trying again. The GPU may be stuck due to heat. |
| Use Compressed Air | Spray compressed air around the PCIe slot to remove dust that might be causing the GPU to stick. |
| Ask for Professional Help | If the GPU is still stuck after all these steps, it might be time to ask a professional technician for help. |
How to Prevent a GPU from Getting Stuck in the Future
Here are some tips to prevent your GPU from getting stuck the next time you need to remove it:
- Clean Your Computer Regularly
- Dust can build up inside your computer, making it harder to remove parts. Use compressed air to clean the inside of your computer every 3 to 6 months.
- Don’t Over-Tighten Screws
- When you install your GPU, make sure the screws are tight enough to hold it in place, but don’t tighten them too much. Over-tightened screws can be difficult to remove later.
- Use High-Quality Thermal Paste
- Thermal paste is used to keep your GPU cool. If your GPU runs too hot, it may expand and get stuck in the motherboard. Using good quality thermal paste helps prevent overheating.
What to Do If You Damage the GPU or Motherboard
Accidents can happen when removing a GPU. Here’s what to do if you accidentally damage the GPU or motherboard:
| Problem | Solution |
|---|---|
| Broken PCIe Latch | You can still use the screws to hold the GPU in place, or consider replacing the motherboard. |
| Bent GPU Pins or Connectors | If the pins on the GPU are bent, you may need to repair or replace the GPU. Seek help from a professional if needed. |
| Damaged Motherboard | If the motherboard gets damaged, you may need to have it repaired or replaced by a technician. |
FAQs GPU Stuck in Motherboard?
Q1: Can forcing the GPU out damage the motherboard or GPU?
Yes, forcing it can cause significant damage to both the GPU and the motherboard. Always be patient and remove it gently to avoid costly repairs.
Q2: How do I find and release the PCIe latch?
The PCIe latch is located at the end of the PCIe slot on the motherboard. Gently press it down or sideways, depending on the design, to release the GPU. It’s crucial to press this latch properly, or the GPU won’t come out easily.
Q3: What if the GPU remains stuck after pressing the PCIe latch?
If the GPU doesn’t release after pressing the latch, check for screws that may still be securing it, let the computer cool down to avoid thermal expansion, and try gently wiggling the GPU to loosen it. Never apply too much force, as this can cause damage.
Q4: How often should I clean the inside of my computer to avoid a stuck GPU?
Clean your computer every 3 to 6 months to prevent dust buildup. Dust can cause components like the GPU to stick or cause overheating, which could lead to expansion and make it difficult to remove.
Q5: Is it safe to use tools to remove a stuck GPU?
Yes, using the right tools is safe. A screwdriver is needed to remove the screws, and a plastic pry tool can help release a stuck GPU. Avoid using metal objects that might scratch or damage the motherboard or GPU connectors.
Q6: Can heat expansion make the GPU harder to remove?
Yes, high temperatures cause components to expand, making the GPU fit tighter in the PCIe slot. Let the system cool for about 30 minutes before trying to remove the GPU.
Q7: What should I do if I accidentally break the PCIe latch or damage the GPU pins?
If the PCIe latch is broken, you can still secure the GPU using the case screws. However, if the GPU pins or motherboard slot are damaged, you may need professional repair or to replace the affected parts.
Q8: Can I reuse the GPU after removing it?
Yes, as long as the GPU and motherboard are undamaged, you can reinstall the same GPU. Before reinstalling, make sure both the PCIe slot and the GPU connectors are clean.
Q9: How can I prevent my GPU from getting stuck in the future?
Regular cleaning of your computer’s interior, proper installation (ensuring screws aren’t overtightened), and allowing proper cooling are key to preventing your GPU from getting stuck again. These steps ensure your system stays in good condition.
Q10: Do I need an anti-static wrist strap to remove a GPU safely?
While using an anti-static wrist strap is recommended to prevent static electricity damage, you can still safely remove the GPU without power one by grounding yourself. Simply touch a metal part of your case frequently to discharge static.
Q11: Can dust buildup cause the GPU to stick?
Yes, dust can build up in the PCIe slot, making the GPU harder to remove. Regular cleaning with compressed air prevents this issue and also improves overall system performance by keeping components cool.
Q12: How long should I let my computer cool before attempting to remove the GPU?
Allow the system to cool for at least 20-30 minutes. Heat from recent use can cause the GPU and motherboard to expand slightly, making removal difficult.
Q13: Can pulling too hard break the PCIe slot or damage the GPU?
Yes, pulling with excessive force can break the PCIe slot or damage the GPU’s connectors. Always remove the GPU gently and ensure the PCIe latch is properly released to avoid breaking the slot.
Q14: Will gently wiggling the GPU damage the motherboard?
No, gently wiggling the GPU from side to side while pulling it out is a safe way to help dislodge it. Just be sure not to use too much force to prevent damaging the PCIe slot or motherboard.
