Mastering Unity GPU Instancing.

Table of Contents

Introduction to GPU Instancing

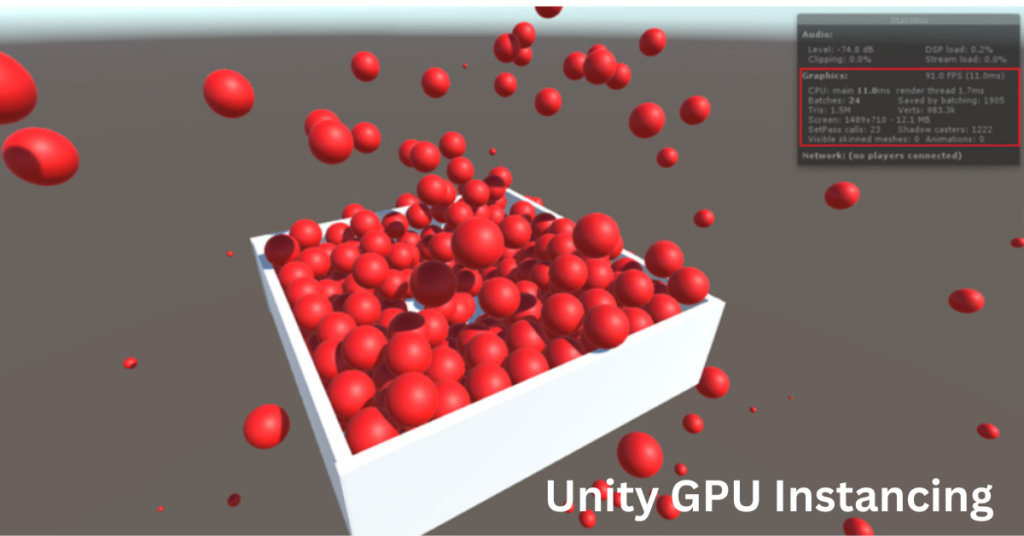

Have you ever wondered how video games make thousands of trees, rocks, or characters appear on your screen without slowing down? One secret behind this magic is called Unity GPU Instancing. Simply put, GPU instancing is a clever way to draw many copies of the same object in a game without using a lot of computer power. This is super important in game development because it helps games run smoothly, even when there are many things happening at once.

Why Use GPU Instancing?

Using GPU instancing in Unity, a popular game engine, has many benefits:

Improved Performance: By reducing the number of times the computer needs to tell the graphics card to draw the same object, games can run faster.
Less Memory Use: Instancing allows games to use less memory, which is important for mobile devices and older computers.
Better Visuals: With better performance, developers can add more detail and complexity to their games without sacrificing speed.

How GPU Instancing Works

The Mechanics Behind GPU Instancing

So, how does GPU instancing actually work? When you want to show many trees in a game, instead of telling the computer to draw each tree one by one, you can use GPUs instancing. This allows you to draw all the trees at once. The graphics card can handle this much faster, making the game run better.

Here’s a simple comparison:

Rendering Method	Draw Calls	Performance
Traditional Rendering	1000 (for 1000 trees)	Slower
GPU Instancing	1 (for 1000 trees)	Much Faster

Hardware Requirements

Before using GPU instancing, make sure your computer or game console has a compatible graphics card. Most modern systems can handle it, but it’s always good to check!

Setting Up GPU Instancing in Unity

Step-by-Step Guide

Getting started with Unity GPU instancing is easier than you might think. Here’s how to set it up:

Create Your Object: First, create or import a 3D model, like a tree or a rock. You can use simple shapes to start.
Enable GPU Instancing: In the material settings, look for a checkbox that says “Enable GPU Instancing.” Make sure to check it!
Use the Mesh Renderer: Attach your material to the Mesh Renderer component of your object. This is where the magic happens!
Instantiate the Objects: Use code to create many copies of your object. Here’s a simple code snippet to help you understand:

csharpCopy code

void Start() {
    for (int i = 0; i < 1000; i++) {
        {Instantiate(yourObjectPrefab, new Vector3(i, 0, 0), Quaternion.identity);}
    }
}

Common Issues and Troubleshooting

Sometimes, things might not work as expected. Here are a few common problems and how to fix them:

Issue: Objects don’t appear.
- Fix: Check if GPU instancing is enabled in the material settings.
Issue: Performance is still slow.
- Fix: Make sure you’re using a compatible graphics card and that the number of unique materials is minimized.

Best Practices for Using GPU Instancing

Choosing the Right Assets

When using GPU instancing in Unity, pick models that are simple and similar. For example, if you have many trees, make sure they all use the same texture and material. This helps the graphics card draw them more efficiently.

Performance Considerations

Using GPU instancing is a great way to improve performance, but it’s important to balance the number of objects. If you have too many unique objects, it can slow things down. Always keep track of how many instances you’re drawing.

Advanced Techniques

Combining GPU Instancing with Other Optimization Methods

To get the best performance, you can use GPU instancing along with other methods. For example, using Level of Detail (LOD) can help. LOD means that objects farther away from the camera can look less detailed. This saves processing power!

Example of LOD Implementation

You can create multiple versions of an object: one high-detail version for close-up views and a low-detail version for far away. Unity has built-in support for LOD, making it easier to manage these models.

Using GPU Instancing with Dynamic Objects

Sometimes, you want to move objects around in your game, like characters or animals. This can be tricky with GPU instancing. Make sure to test how your dynamic objects interact with instanced objects for the best results. Here’s a tip: use a pool of instanced objects that can be reused instead of creating new ones each time.

Real-World Applications of GPU Instancing

Many popular games use Unity GPU instancing to improve performance. For instance, in games like Fortnite, where there are lots of trees and buildings, instancing helps keep everything running smoothly. Developers can add more elements to the game without worrying about lag.

Case Study: Unity Games

Game Title: Hollow Knight
- Use of Instancing: The game features many enemies and background objects that benefit from GPU instancing, helping maintain a fluid experience even in crowded scenes.
Game Title: Subnautica
- Use of Instancing: Underwater flora and fauna use instancing to create vibrant, immersive environments while ensuring good performance.

Conclusion

In summary, GPU instancing is a fantastic tool in Unity that allows game developers to create beautiful worlds without slowing down performance. By following best practices and understanding how it works, you can make your games more efficient and enjoyable. It’s like having superpowers for your game!

Frequently Asked Questions (FAQs)

What is the difference between GPU instancing and static batching?

GPU instancing allows you to draw many copies of the same object using a single draw call. This is great for objects like trees or rocks that are identical. Static batching, on the other hand, combines multiple static (non-moving) objects into one larger object. This reduces the number of draw calls, making it more efficient for scenes with many fixed objects.

Can GPU instancing be used with particle systems?

Yes! GPU instancing can be used with particle systems to optimize rendering. This is especially useful for effects like explosions or rain, where many particles are displayed at once. Just make sure to set up your particle system correctly to take advantage of instancing.

How does GPU instancing affect mobile game performance?

Using GPU instancing can significantly improve mobile game performance by reducing the number of draw calls the GPU has to process. This is crucial for mobile devices, which often have limited resources. However, always test your game on different mobile devices to ensure a smooth experience.

Are there any limitations to GPU instancing?

Yes, there are a few limitations. First, all instances must share the same material. If you have many unique materials, it can negate the benefits of instancing. Additionally, while instancing works well for static objects, it can be more complicated for dynamic objects, which may require different handling.

How can I monitor the performance impact of GPU instancing?

You can use Unity’s Profiler to monitor the performance impact of GPU instancing. The Profiler shows draw calls, frame rate, and other performance metrics. Look for a decrease in draw calls when you use instancing effectively, indicating better performance.

What types of objects are best for GPU instancing?

The best candidates for GPU instancing are objects that are identical or very similar in shape and material. Examples include trees, rocks, and repetitive structures like fences. Using simple, low-poly models can also enhance performance, especially in large quantities.

How can I improve my knowledge of GPU instancing?

To improve your understanding of GPU instancing, explore Unity’s official documentation and take online tutorials. Joining game development forums or communities can also provide valuable insights and tips from experienced developers.

Can I use GPU instancing in older versions of Unity?

While GPU instancing was introduced in Unity 5.0, its performance and compatibility have improved in later versions. If you’re using an older version of Unity, it’s best to upgrade to take full advantage of instancing features and optimizations.

What is the maximum number of instances I can draw with GPU instancing?

The maximum number of instances you can draw with GPU instancing depends on your graphics hardware and the complexity of the objects. Generally, modern GPUs can handle thousands of instances, but it’s best to test your specific setup to find the optimal number for performance.

Does GPU instancing work with all shaders?

Not all shaders support GPU instancing. For instance, standard Unity shaders typically support it, but custom shaders may require specific coding to enable instancing. Check the shader documentation and ensure your shader is set up for instancing.

Can I use different materials for instanced objects?

No, all instanced objects must share the same material. If you need to use different materials, you’ll have to create separate draw calls for those objects, which can reduce the performance benefits of instancing.

How do I debug issues with GPU instancing?

To debug issues with GPU instancing, use the Unity Profiler to check if instancing is being applied correctly. Look for unexpected increases in draw calls or performance drops. Also, check the material settings to ensure instancing is enabled.

Is GPU instancing suitable for 2D games?

While GPU instancing is primarily used for 3D objects, it can be beneficial in 2D games as well, especially for rendering many identical sprites. Using instanced shaders can help improve performance when displaying multiple instances of the same sprite.

How do I know if my game is utilizing GPU instancing?

You can determine if your game is utilizing GPU instancing by using the Unity Profiler or the Frame Debugger. Look for reduced draw calls and confirm that instances are being rendered as intended. Additionally, check the material settings to ensure instancing is enabled.

Can GPU instancing improve the performance of VR games?

Yes, GPU instancing can significantly improve performance in VR games by reducing draw calls. This is particularly important for VR, where maintaining a high frame rate is crucial for a smooth experience. Optimize your objects for instancing to make the most of this benefit.

What are the best practices for using GPU instancing in a large scene?

In large scenes, consider the following best practices for GPU instancing:

Use fewer unique materials to maximize instancing.
Group similar objects together to reduce draw calls.
Use LOD techniques to optimize distant objects.
Regularly test performance with the Unity Profiler.

How does GPU instancing affect lighting in my game?

GPU instancing can interact with lighting in specific ways. For example, if you’re using baked lighting, instances can share the same lightmaps, which is efficient. However, dynamic lighting may require careful setup to ensure all instances receive the correct lighting effects.

Are there any alternatives to GPU instancing?

Yes, alternatives include static batching for non-moving objects and dynamic batching for smaller, dynamic objects. Each method has its own benefits and drawbacks, so the best choice depends on the specific needs of your game.
